Maretron | SKU:
33357

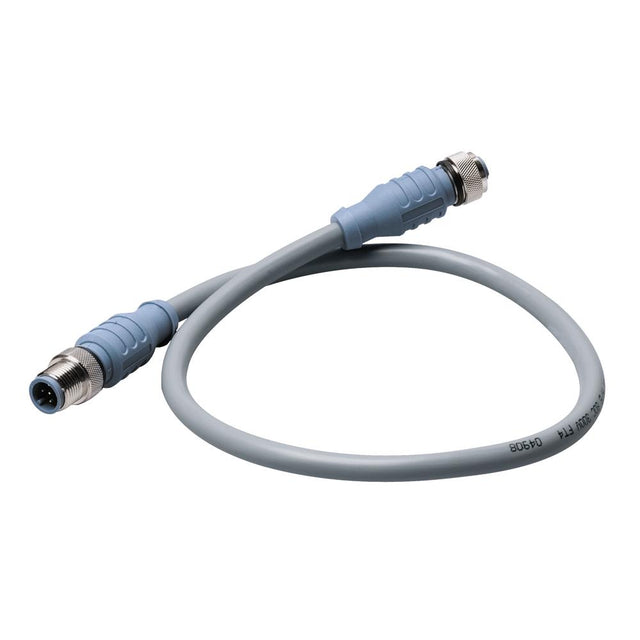

Maretron Micro Double-Ended Cordset - 2 Meter
$30.30
Unit price
/
Unavailable
Maretron Micro Double-Ended Cordset - 2 Meter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
![Maretron Micro Double-Ended Cordset - 2 Meter [CM-CG1-CF-02.0] - Life Raft Professionals](http://www.liferaftprofessionals.com/cdn/shop/products/maretron-micro-double-ended-cordset-2-meter-cm-cg1-cf-020-946030.jpg?v=1630443254&width=112)
Micro Double-Ended Cordset - 2 Meter
Mechanical:
- Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
- Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
- Contact Mat/Plating: Brass/Gold
- Coupling Nut Mat/Plating: Brass/Nickel
- Connector Outside Diameter: 0.59 Electrical
- Current Rating: 4.0 Amps
- Voltage Rating: 250 V
Cable - Outer Jacket Mat/Color: PVC/Gray
- Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
- Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
- Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)Environmental
- Protection Class: IEC IP68, NEMA 1,3,4,6P
- Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
Approvals - (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
- (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4
- NMEA: NMEA 2000 Approved
Specifications:
- Cable Length (Feet): 6'
- Box Dimensions: 1"H x 7"W x 7"L WT: 0.35 lbs
- UPC: 873804001524
