Wichard Marine  |  SKU: 97685

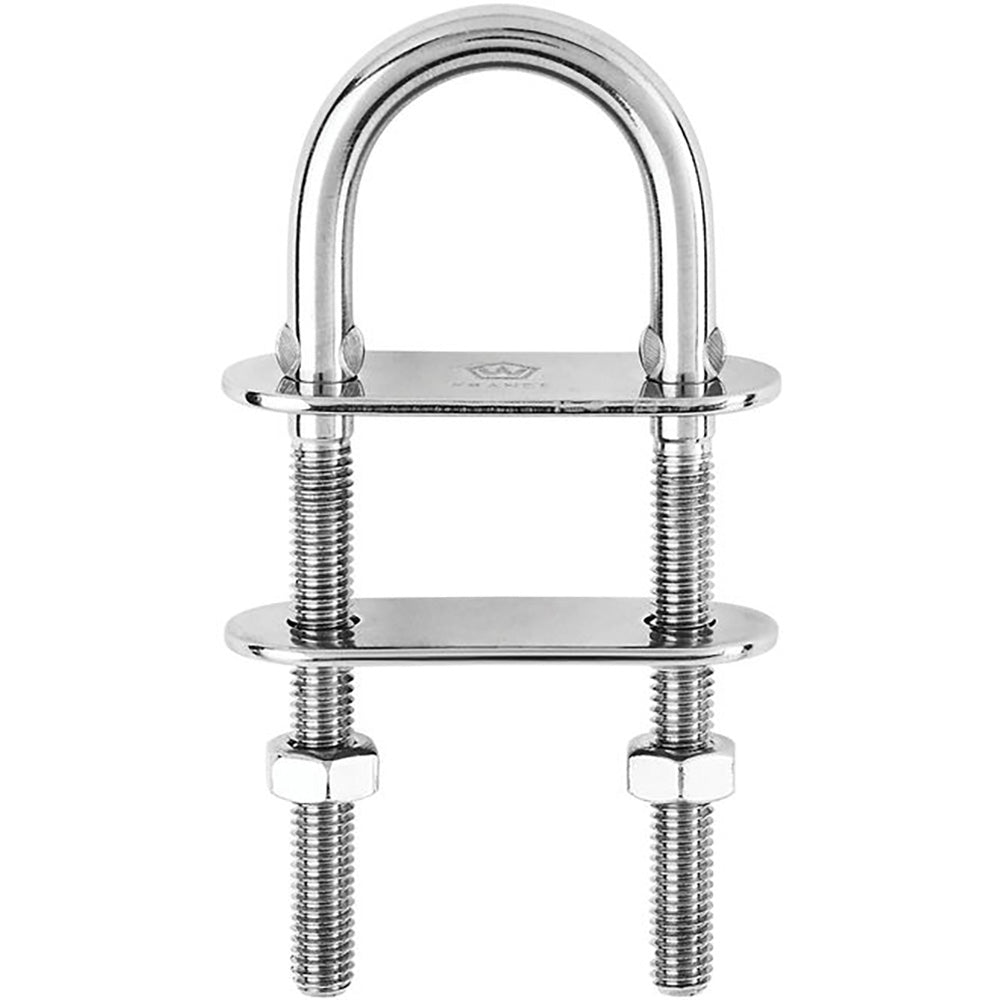

Wichard U-Bolt Pad Eye - 5mm Diameter - 13/64" - 60mm Length - 2-23/64"

$12.95 $18.50


U-Bolt Pad Eye - 5mm Diameter - 13/64" - 60mm Length - 2-23/64"

Features:

  • Fully drop forged product with high-quality stainless steel
  • Outstanding working and breaking loads
  • For any kind of fastening applications (shrouds, lifelines, blocks...)
  • Delivered with bolts and counter-plate
  • Max tightening torque: 4.5 Nm

Applications:

  • Various fastening applications: shrouds, lifelines, blocks…

Specifications:

  • Materials: 316L stainless steel grade
  • Working load: (lb) 1410 / (kg) 640
  • Breaking load: (lb) 4400 / (kg) 2000
  • Weight: (lb) 0.077 / (g) 35

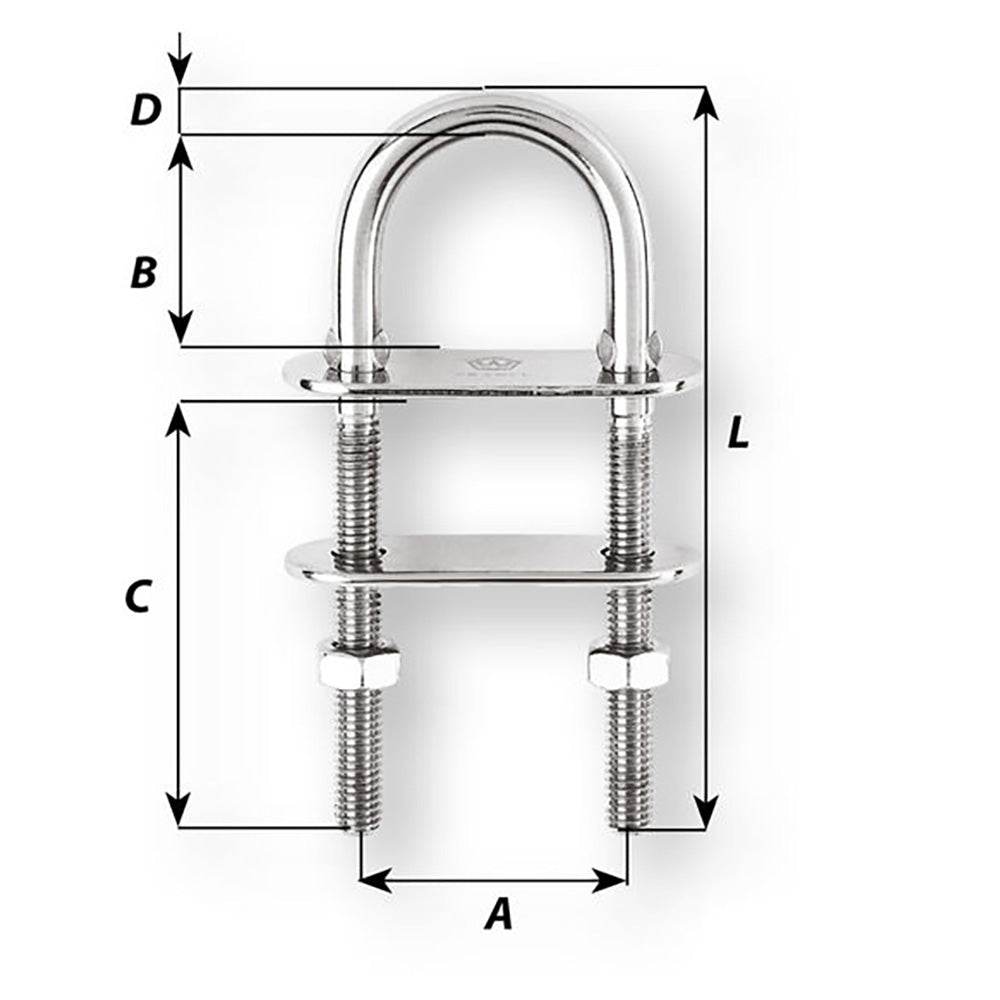

Dimensions:

  • A: (inch) 1 7/64" / (mm) 28
  • B: (inch) 15/16" / (mm) 24
  • C: (inch) 1 3/16" / (mm) 30
  • D diameter: (inch) 13/64" / (mm) 5
  • Length: (inch) 2 23/64" / (mm) 60

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
